Cyclic

Table of Contents

• Properties
• Usage
• Details
• Further information

Properties

• Coupling condition between a pair of patches
• Faces on each coupled patch must have the same topology, i.e. they must have collocated points such a one-to-one mapping exists between the faces on each side.
• The coupling is treated implicitly using the cell values adjacent to each pair of cyclic patches
• The face values are determined using linear interpolation between the cell values

Usage

The condition requires entries in both the boundary and field files. Mesh boundary file:

<patchName>
{
    type            cyclic;
    neighbourPatch  <coupled patch name>;
    transform       <transform type>;
    ...
}

Field file:

<patchName>
{
    type            cyclic;
}

Details

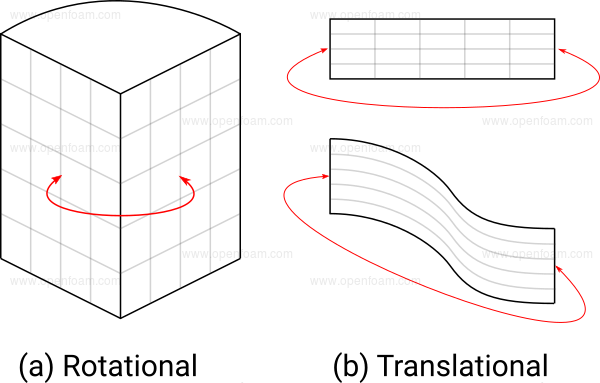

Cyclic boundary types

Further information

Source code:

• Foam::cyclicPolyPatch
• Foam::cyclicFvPatch
• Foam::cyclicFvPatchField

Example usage:

• pimpleFoam channel395 tutorial: $FOAM_TUTORIALS/incompressible/pimpleFoam/LES/channel395

---
