Mid-point divergence scheme

Table of Contents

• Properties
• Normalised Variable Diagram
• Usage
• Further information

Properties

• First/second order
• Unbounded
• Equivalent to linear for isotropic meshes
• Face flux computed using

  \[ \phi_f = 0.5 \left( \phi_c + \phi_d \right) \]

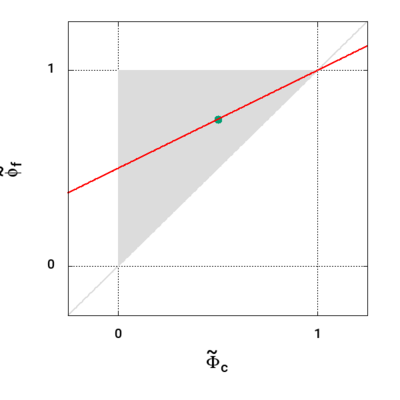

Normalised Variable Diagram

Usage

The scheme is specified using:

divSchemes
{
    default         none;
    div(phi,U)      Gauss midPoint;
}

Further information

Source code

• Foam::midPoint

---
